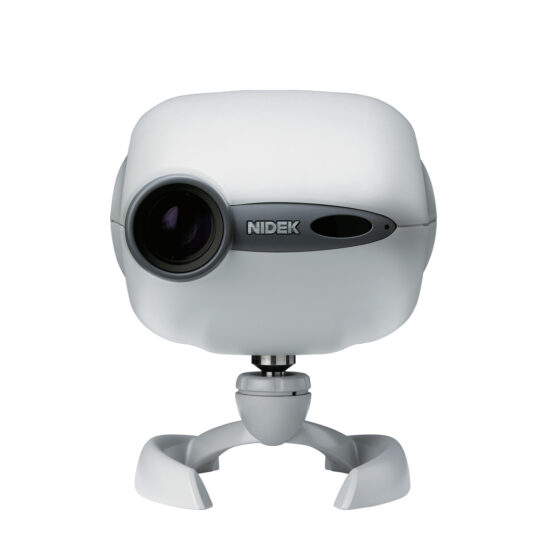

NIDEK CP-9 Chart Projector

At a glance:
  • Long-life light source for improved cost efficiency
  • Brighter and clearer chart display with white LED
  • Optical zoom for a variable installation distance
  • Sophisticated design
  • Easy focus adjustment by rotational LED aperture (available for the CP-9 EF)

The NIDEK CP-9 Chart Projector is a user-friendly chart projector that provides a brighter and clearer chart display with a white LED. The long-life light source achieves high cost efficiency for daily examination. Additionally, an optical zoom enables a variable installation distance. Easy focus adjustment by rotational LED aperture is available for your convenience with the CP-9 EF model.

Model: CP-9 (type M, T, G, PhM, UK) / CP-9 EF (type T, G)

Projection distance: 2.9 to 6.1 m

Projection magnification:
30x for type M, type T, type G, type PhM (at distance of 5m)
25x for type UK (at distance of 5m)

33 types of type M, type T, type G, type PhM
27 types for type UK

Masking function: No mask, horizontal line mask, vertical line mask, single letter mask

Filtering function: Red-green filter

Chart size:
type M, type T, type G, type PhM
330 (W) x 225 (H) mm, ø275 mm (at distance of 5m)
250 (W) x 225 (H) mm, ø250 mm (at distance of 5m)

Light source: 2.3W, White LED

Chart brightness: 230 cd/m2 (at distance of 5m), switchable

Chart changeover devices:
Remote control
Control console for the NIDEK Intelligent Refractor RT-6100/ 5100/ 3100

Chart changeover speed: 0.3 seconds / 1 frame

Auto light off time: 5 minutes/ 15 minutes/ Off selectable

Power supply: 100 to 240 V AC, 50/60 Hz

Power consumption: 60 VA

Dimensions/ Mass:
Main body: 188(W) x 300 (D) x 192 (H) mm / 3.1 kg or 7.4 (W) x 11.8 (D) x 7.6 (H) ” / 6.8 lbs
Remote control: 66 (W) x 184 (D) x  21 (H) mm / 150g (including batteries) or 2.6 (W) x 7.2 (D) x 0.8 (H) ” / 0.3 lbs

Standard accessories: Remote control, screen, polarising glasses, wood screw, power cord, remote control battery, spare fuse, connector cap, chart sheet

Additional accessories: Table stand, wall bracket, floor stand, screen angle adjustment bracket, communication cable for the refractor, red-green glasses, screen stand, reflection mirror, screen angle fixing set

  • NIDEK CP-9 Chart Projector Product Brochure Download
